Description

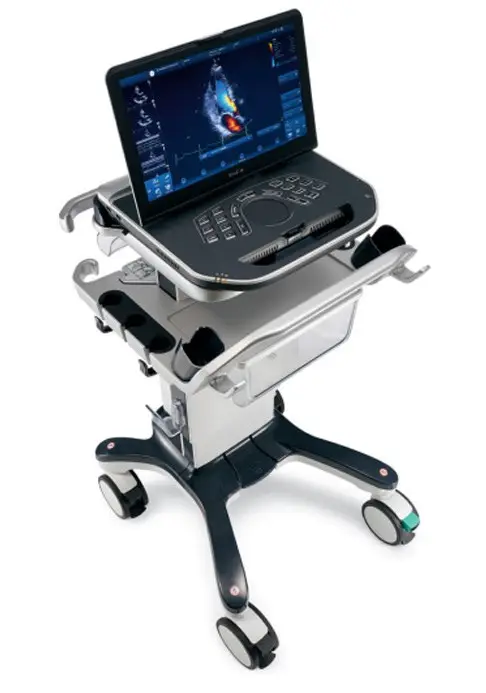

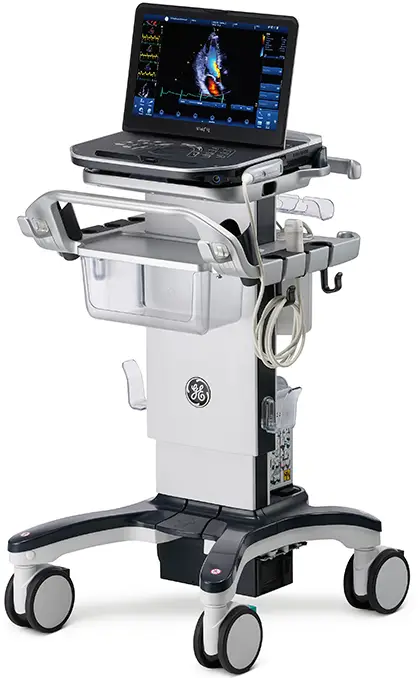

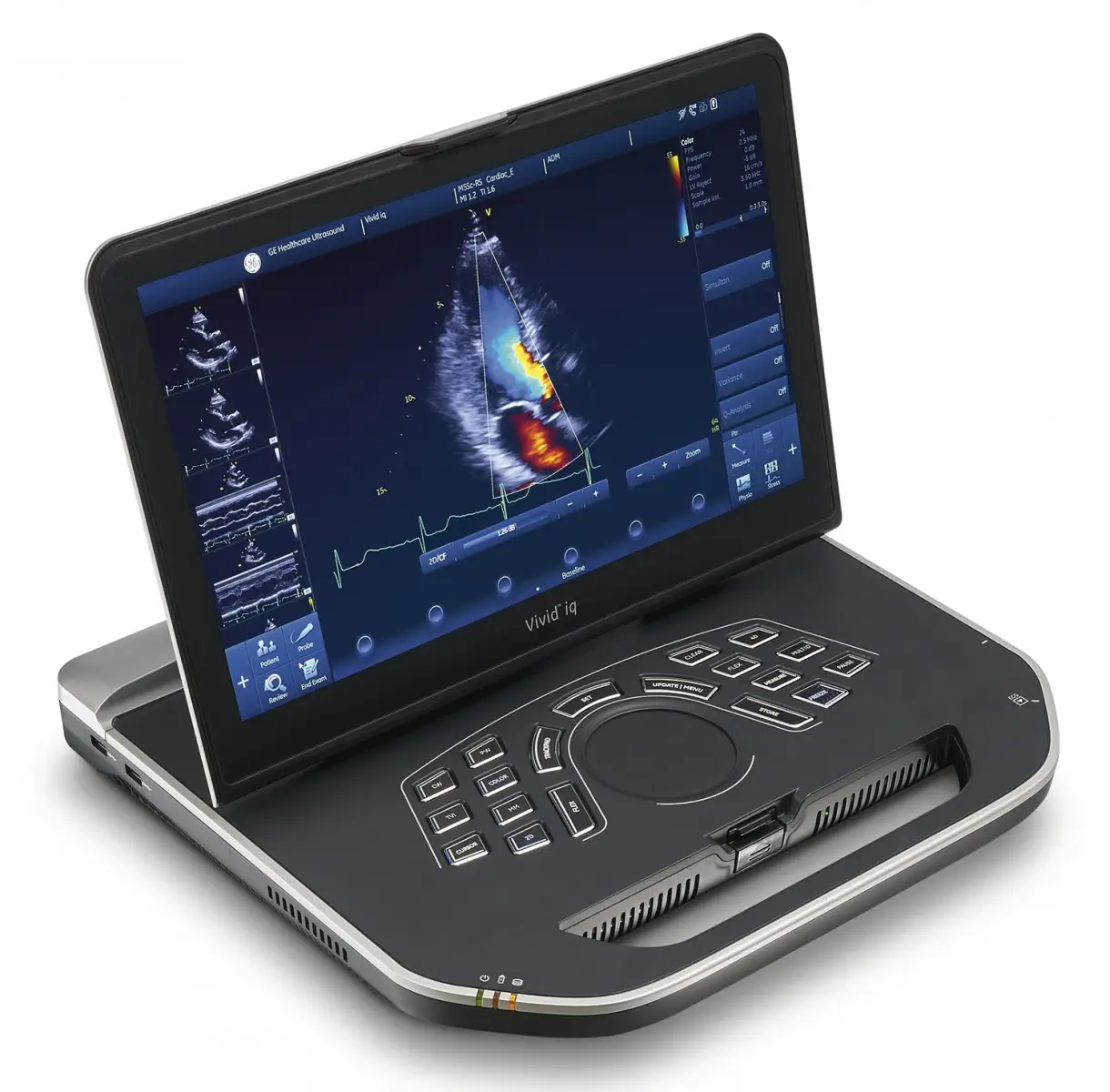

New Vivid IQ ultrasound system, Our most advanced portable cardiovascular ultrasound system enables us to obtain the highest-quality images even in the most remote areas.
Image quality
Superb image quality combined with complete portability
Exceptional performance
Our latest AI-based technologies improve the efficiency of our work processes
Clinical versatility
A self-contained system offering clinical solutions beyond the fields of adult medicine and cardiology
Modern ergonomics
A familiar, modern and efficient design with an excellent operator interface.
Achieve clinical excellence with Vivid iq

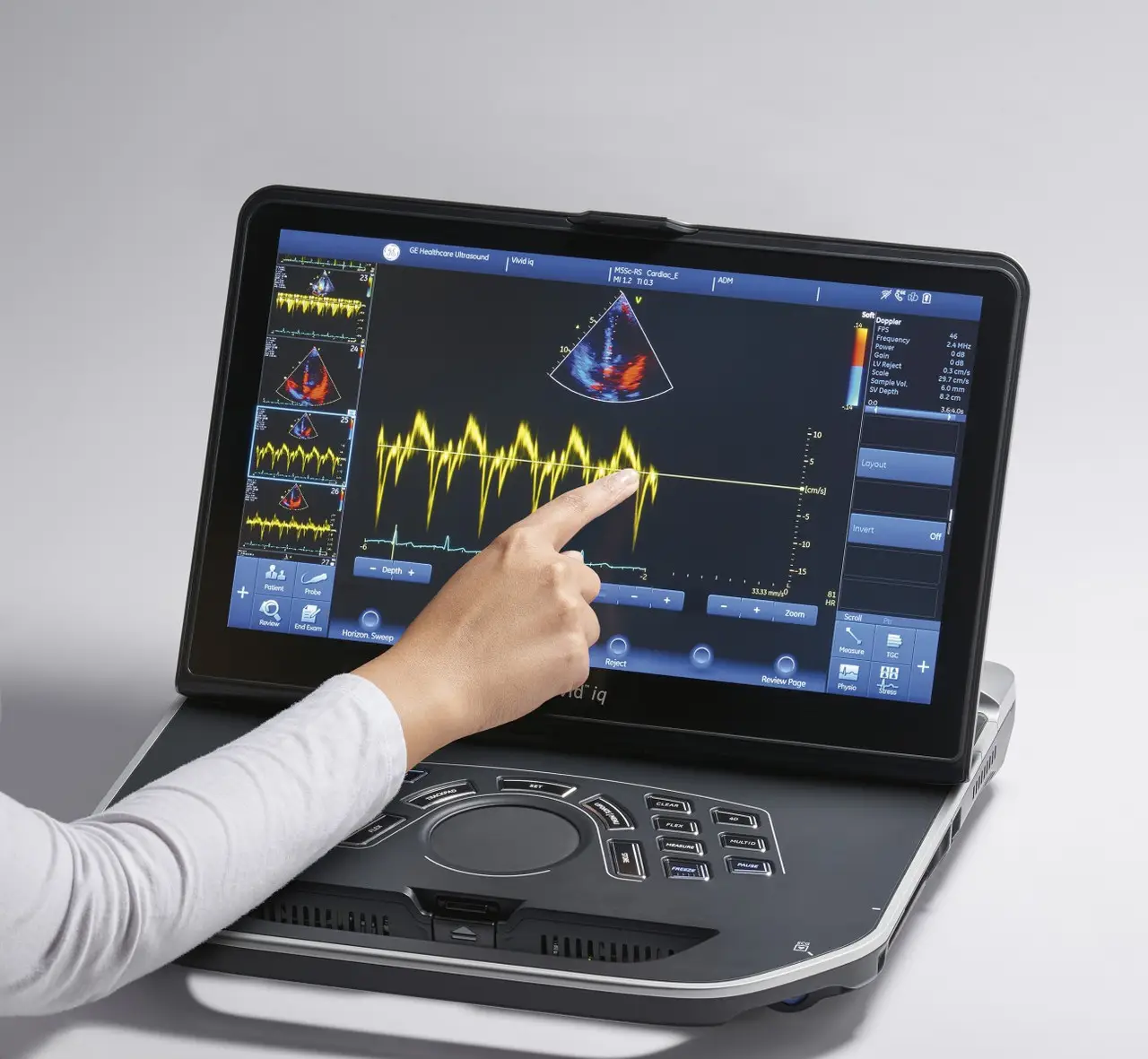

Intuitive and just as easy to use as your personal devices, the updated user interface Vivid iq Ultra Edition helps make scanning quick and easy.
Tools that harness the power of artificial intelligence help to reduce the time taken for examinations and cut the number of keystrokes by up to 80%.
Not only does this save time, but it also helps to reduce operator fatigue and improve reproducibility. Cleaning time is also minimised thanks to the sealed control panel, which helps you move on to the next examination quickly.
A portable device that does not compromise image quality
Thanks to GE Healthcare’s Vivid iq system for portable devices and the matrix sensor M5Sc XDclear You’ll enjoy exceptional image quality wherever you are. And now, the Penetration QuickApp mode enhances visualisation during technically challenging scans with just a single tap.
-
Technical specifications of the Vivid ultrasound scanner
-
Monitor21.5-inch widescreen High Definition (HD) monitor
-
command panel10.1” control panel integrated with the main monitor
-
Sensor ports1 port on the console or 4 active ports on the trolley
-
Battery.60 mins/180 mins (extended battery life)/sleep mode – quick start
-
Automatic image optimisationYes
-
Expansion of the scanning sectorYes
-
-
Modes and features
-
Two- and three-view drawingsYes
-
Scanning AssistantYes
-
UD Imaging – automatic noise reductionYes
-
True Confocal Imaging – adaptive contrast enhancementYes
-
CPI imaging – image smoothing with suppression of speckle noise and artefactsYes
-
LVO Contrast – a programme for the use of contrast agentsYes
-
4D Auto LVQ – assessment of myocardial motion in 4DYes
-
AMM/Curved AMM – anatomical (curved) M modeYes
-
Strain Elastography – compression elastographyYes
-
Pre-Post Compare – labelling of images and measurements before and after manipulationYes
-
IMT – measurement of the intima-media complexYes
-
FlexiSlice – visualisation of volumetric rendering and multiplanar reconstructionYes
-
Dual Crop – rapid volume reconstruction between two reconstruction linesYes
-
Cardiac Auto Doppler – automatic target area selection and measurements in Doppler modeYes
-
Virtual Convex – field-of-view extension for linear sensorsYes
-
TVI/Tissue Tracking – tissue DopplerYes
-
Compound – multi-vector scanningYes
-
Extended Field of View (LogiqView) – panoramic scanningYes
-
Q-Analysis – quantitative indicators: tissue Doppler/contrast studiesYes
-
Z-Scores: Paediatric Reference ValuesYes
-
Reports for all types of researchYes
-
DICOM Connectivity Pack – image transferYes
-
Tricefy – cloud storageYes
-
LVO Contrast – the use of phase-inverted harmonicsYes
-
-
Automated measurements
-
Stress – assessment of myocardial perfusion under stressYes
-
AFI 3.0 – calculation of left ventricular complianceYes
-
Easy AFI LV – calculation of left ventricular motion without synchronisation with the ECGYes
-
AFI RV, AFI LA – calculation of the mobility of PS and LPYes
-
Auto EF 3.0 – automatic calculation of the emission fractionYes
-
Easy Auto EF – automatic calculation of the ejection fraction without synchronisation with the ECGYes
-
AI Auto Measure – identification of the anatomical region and calculationYes
-
Tricefy – cloud storageYes
-
-
4D capabilities
-
Single Beat 4D – real-time 3D imagingYes
-
4D Markers – 4D markingYes
-
4D Auto LVQ – 4D assessment of the left ventricleYes
-
4D Auto MVQ – 4D assessment of the mitral valveYes
-
4D Auto AVQ – 4D assessment of the aortic valve Yes
-
- 4D transoesophageal echocardiography
- ECG
- Stress echocardiography
- Intracardiac ultrasound echocardiography (ICE)
- Tissue Doppler
- Assessment of the synchrony between cardiac contraction and myocardial deformation
- Qualitative and quantitative assessment of cardiac contractility and the degree of myocardial deformation
- Virtual convex
- Analysis of global left ventricular contractility and automatic assessment of left ventricular mass
- 3-dimensional analysis and modelling of aortic valve function
- Storage, processing and transmission of information in DICOM 3.0 format
- Wireless data transfer and the ability to connect to a computer
- The option to upgrade the scanner to the Vivid IQ Premium and Vivid IQ 4D versions
- Assessment of vessel thickness
- Compatibility with the Catosound navigation system and the CardioLab and MacLab systems
- Automatic Left Ventricular Function Display (AFI)
- Automatic detection of the boundaries and calculation of the thickness of the intima-media complex
- Non-Doppler visualisation of blood flow in blood vessels (B-Flow)
- Panoramic scanning (LOGIQ View)
- The ability to work with «raw» data
Vivid iq is available in various configurations: from a standard system to a high-end version for 4D-TEE imaging.
