Description

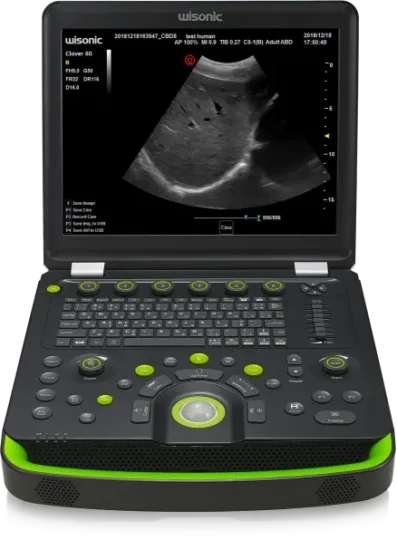

The Clover 60 is a modern, expert-class portable ultrasound scanner for diagnostics, offering new imaging capabilities, featuring the full range of scanning modes found in a fixed-base system, an ergonomic build and design, a highly durable housing, and the use of broadband imaging techniques across all scan types.

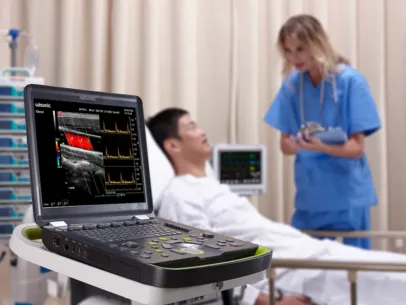

The device can be used for both emergency examinations and specialised investigations of the cardiovascular system, internal organs and the musculoskeletal system. The system is equipped with various sensors, a 15-inch LED display, two sensor ports, a suite of applications, and innovative tools for processing and interpreting the results obtained.
The Clover 60 is the world’s lightest HCU with two sensor ports.

About the equipment:

• Single-crystal ultrasonic sensors
• A wide range of sensors
• Specialised protocols
• Two active ports for sensors
• The SSD delivers speeds of under 5 seconds
• Up to 120 minutes of battery life

HOLO™ PW supports three different PW Doppler regions in real time. Once the SV position has been frozen, it can be moved freely, and the stenosis measurement will be more accurate within the same cardiac cycle.

The Cardio Advanced Software Package – an advanced software package for cardiological examinations. It assesses the dimensions of the heart and its individual structures (ventricles, atria, interventricular septum, ventricular and atrial myocardial thickness, etc.), the presence and volume of fluid in the pericardium, and the condition of the heart valves.

Visualisation of the vascular tree

Follicles in B-mode

High-resolution imaging has become an indispensable tool in modern ultrasound examination and the primary means of ensuring accurate diagnosis across various fields. The Clover 60 was designed with clinicians’ needs in mind to help them meet their clinical objectives. Consequently, the device features an ultra-lightweight system offering best-in-class image quality, combined with ease of use and an intuitive control platform.

Image processing:

•  SCI – a mode that combines ultrasound beams at different angles, thereby reducing artefacts such as side lobes, reverberations and mirror images, minimising shadow formation, preventing distortion of shape and reducing image graininess
• T-SSI – a real-time acoustic signal processing mode that reduces speckle noise and minimises artefacts at every stage of ultrasound image formation. In addition to the automatic settings, the customisation functions allow the user to select different levels of optimisation to achieve tomographic image quality.
• One Key Optimisation – image optimisation at the touch of a button, taking into account the anatomical features of the subject
• Ultra-wide Steer Angle – ultra-wide viewing angle

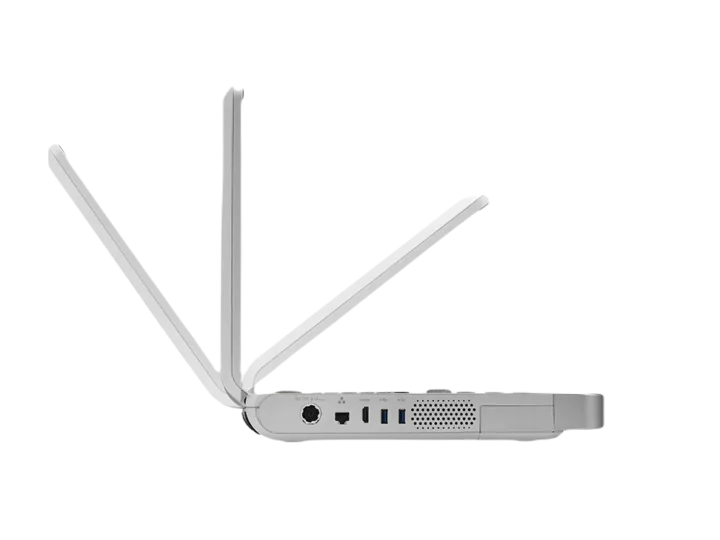

Interfaces:

• HDMI / 3 pcs.
• USB 2.0 / 1 pc.
• USB 3.0 / Wi-Fi;

Sensors:

• Convex transducer: curvature radius R60, scanning angle ~70 degrees, frequency 1.0–5.0 MHz, maximum scanning depth 30 cm.(used for emergency conditions, abdominal, obstetric and gynaecological examinations, examinations of abdominal vessels, etc.), compatible with biopsy adaptors
• Linear probe: frequency 4–15 MHz, aperture 40 mm, maximum scanning depth 12 cm. (intended for examinations of blood vessels, superficially distributed and small organs, examinations of the breast and mammary glands, and musculoskeletal examinations), supports biopsy adaptors
• Phased-array transducer: 1–4 MHz, scanning depth up to 300 mm (intended for pulmonary, cardiological, abdominal and transcranial examinations in adults and children), compatible with biopsy adapters

Technical characteristics:
