Description
About the NEO ECG S120 Carewell electrocardiograph:
- 7″ high resolution colour touch screen, easy to use. Portable design, compact size;
- It can be powered by an external DC power supply and a built-in lithium rechargeable battery;
- Supports simultaneous acquisition and display of 9/12-lead waveforms, as well as heart rate determination;
- Supports automatic tempo detection and labelling;
- Supports automatic mode, HR, HRV analysis, drug test, ECG event mode;
- Provides 4 sampling modes: pre-sampling, real-time sampling, periodic sampling, and triggered sampling;
- Supports automatic rhythm detection;
- Enter patient information using a virtual alphanumeric keyboard and barcode scanning;
- Record the ECG shape on the screen;
- Output files can be saved in a variety of formats, such as Carewell ECG, PDF, BMP, HL7, DICOM, SCP;
- Easily search patient data, save, view, edit, export, download and print;
- Supports wireless ECG data transmission via WiFi and mobile networks;
- Laser printer support;
- Export patient data to a USB flash drive via the USB connector;
- Maintain control over user login permissions, use password or account and password authentication to use the device;
- Supports online and offline login to the device, as well as viewing patient data in the ward history according to the login account;
- Supports connection to AI-ECG PLATFORM to achieve intelligent diagnostics (Optional).
Advantages of NEO ECG S120:

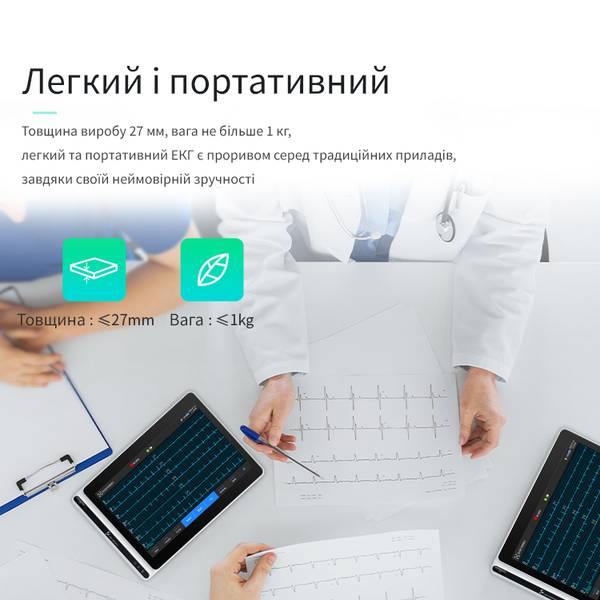

- Lightweight and portable: 27 mm thick and weighing less than 1 kg, the lightweight and portable ECG is a breakthrough among traditional devices due to its incredible convenience;
- Multi-lead ECG mode: supports simultaneous acquisition and display of 9/12-lead waveforms, as well as heart rate detection;

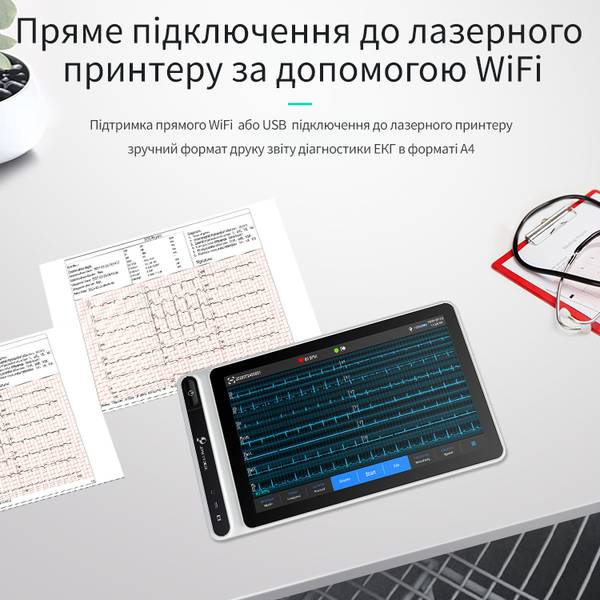

- Direct connection to a laser printer via WiFi: support for direct WiFi or USB connection to a laser printer convenient A4 print format for ECG diagnostic reports;
- Full-screen touch: 7-inch high-resolution (1024x600) colour touchscreen, user-friendly tablet-style ECG design, easy operation;
- Camera scanning: Equipped with a camera that supports taking photos, scanning QR codes, and entering patient IDs and other information.
| Display. | 7-inch tablet |
| Size | 197 mm (L) * 112.4 mm (W) * 26.1 mm (H) |
| Net weight | 0.8 kg |
| Analysis algorithm | Glasgow |
| heart rate range | 30~300 strokes per minute |
| Accuracy | ±1 |
| Withdrawal | 9.12 synchronous collection tap |
| A / D conversion | 24 bits |
| Sample rate | 32000 samples/sec |
| Common mode failure rate | ≥140 dB (AC filter on) ≥120 dB (AC filter off) |
| Time constant | ≥5 с |
| Frequency response | 0.01 Hz ~ 350 Hz (+0.4 dB-3.0 dB) |
| Sensitivity | Auto, 2.5 mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV, 40 mm/mV, error less than ±5% |
| Filter. | AC filter: 50 Hz, 60 Hz, off
EMG filter: 25 Hz, 35 Hz, 45 Hz, off ADS filter: 0.01 Hz, 0.05 Hz, 0.32 Hz, 0.67 Hz |
| Paper speed | 5 mm/s, 6.25 mm/s, 10 mm/s, 12.5 mm/s, 25 mm/s and 50 mm/s, error less than ±3 % |
| Input impedance | ≥100 MΩ (10 Hz) |
| Input circuit current | ≤10nA |
| Calibration voltage | 1 mV±2% |
| Depolarisation voltage | ±900 mV, ±5% |
| Noise | ≤12.5 µV |
| Amplitude quantisation | 0.95 µV/LSB |
| Recovery time after a defibrillation shock | <10 с |
| Pacemaker pulse display | A stimulation pulse with an amplitude of ±2 mV~±700 mV, a duration of 0.1 ms~2.0 ms, an A-5 rise time of less than 100 µs, and a frequency of 100/min can be displayed on the ECG recording. |
| The minimum signal that can be detected | 20 µVp-p |
