Description
Vacuum therapy

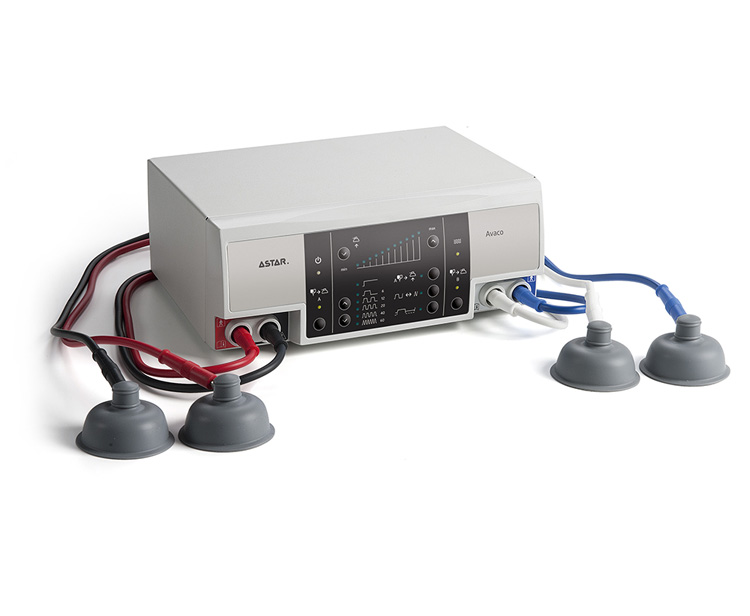

As a vacuum therapy device, Avaco is the ideal complement to pacemakers. It can be used to apply currents by means of
suction cups with integrated electrodes. The vacuum placement of the electrodes makes treatment much easier, especially in areas where flat electrodes are difficult to place.
Moreover, in the pulse mode, mechanical massage is performed, which gives an additional advantage - an increase in blood flow and metabolic rate.
The synchronised mode with generated current is an innovative feature. The vacuum increases during the stimulation phase and decreases during rest. This
mode is designed for a training programme. Self-sealing suction cups significantly increase the comfort of the procedure, especially in the case of
the same type of operation. The ability to choose from a variety of suction cup sizes effectively optimises therapy depending on the type and location of application.
The modern design and applied technical solutions make Avaco one of the most advanced models of this type of device on the market. Avaco is a specialised vacuum therapy device designed for use with electrotherapy devices.
Avaco - benefits for the customer
Greater efficiency of vacuum therapy
To enhance patient comfort during electrotherapy and vacuum therapy, Avaco offers five modes of operation - continuous, pulsed, alternating pulse, synchronised with electric current, and pulsed with increased lower vacuum. The programmed modes of operation also allow you to tailor the type of therapy to the specific needs of the patient to achieve the best possible treatment results.
Higher efficiency of electrotherapy

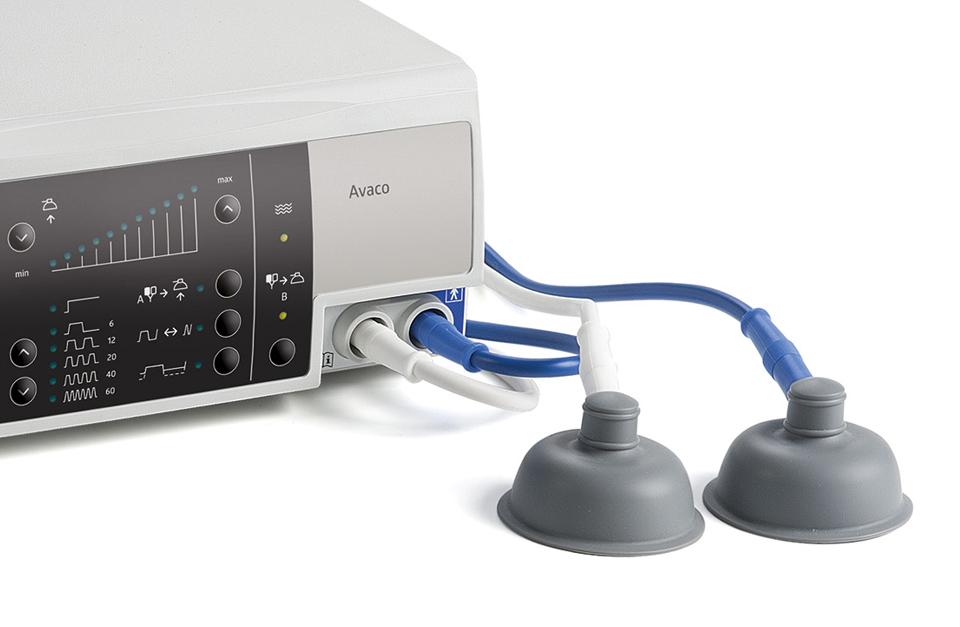

The Avaco is equipped with self-sealing suction cups that make it easy to attach electrodes in places that are difficult to reach with traditional electrodes. This means that you can deliver treatments much more easily and effectively.
Thanks to the mechanical massage effect that occurs during pulsed operation, Avaco offers patients the additional benefits of using vacuum therapy during electrotherapy.
Guaranteed quality of treatment
The device performs a self-test after switching on. This allows for every diagnostic test to be carried out on the device, which in turn guarantees correct operation and repeatability of the parameters. The Avaco unit is equipped with a microprocessor controller that monitors all parameters related to the correctness of the procedure and supports the entire user interface.
Avaco - benefits for the therapist
Ergonomics

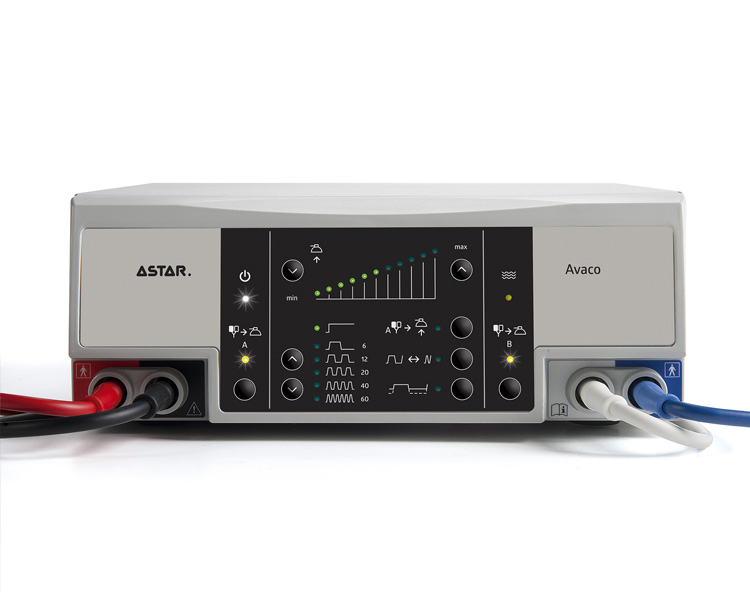

ASTAR is a respected manufacturer of physiotherapy and rehabilitation equipment. The ergonomics of the device, high quality components and advanced technological solutions are the main features of the brand's products. The Avaco device has a modern, robust design and a comfortable keyboard.
The applied systems of container filling alarm, adjustment of processing parameters, self-testing, efficient, quiet pump and easy handling make Avaco a reliable device that is readily chosen by professionals.
Convenience of treatment
Using Avaco in conjunction with an electrotherapy device eliminates the need for Velcro straps or sandbags to secure the electrodes.
Thanks to the self-sealing suction cups, we can place the electrodes exactly where they are applied and start treatment immediately.
Quality of production
The devices offered by the Polish brand ASTAR are devices that are valued by professionals due to their durability and high quality components. ASTAR products meet all the requirements of the Medical Device Directive 93/42/EC.
- two independent types of operation (ease of operation in the same type of operation mode)
- modes:
- permanent
- impulsive
- pulse with variable pulses
- pulse with pulse options (for working with training programmes)
- pulse with increased low vacuum
- two types of suction cup sizes: 60 mm (standard) and 90 mm (optional)
- self-sealing suction cups (suction cups do not require the same type of operation)
- work with electric stimulators manufactured by Astar.
FEATURES OF THE DEVICE
- manual mode
- one treatment channel
VACUUM THERAPY

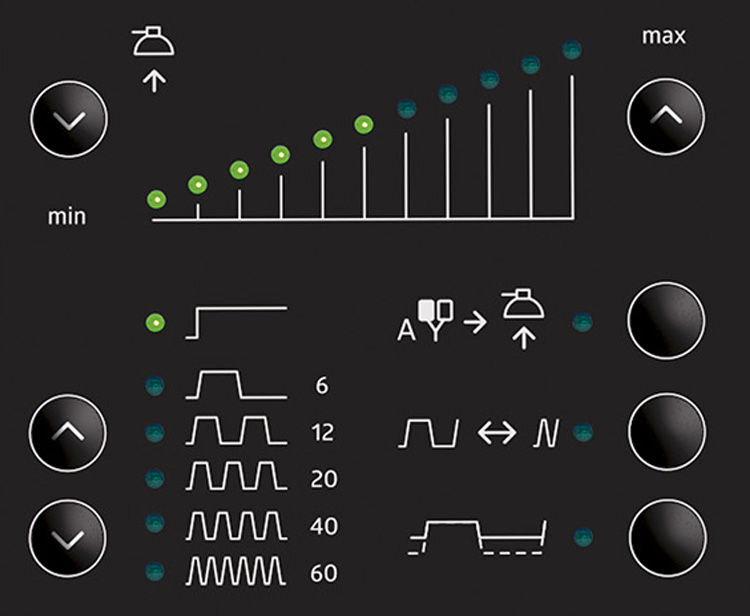

- operating modes: continuous, pulsed, pulsed alternating, current synchronised, pulsating with increasing lower pressure
- two independently switched on circuits (simple operation in single circuit mode)
- self-sealing suction cups
- adjustable vacuum
- control of operation parameters during the procedure
- tank filling alarm
- special mode for draining the tank
- independent slots for the use of electrotherapy electrodes
TECHNICAL PARAMETERS
Parameters of negative pressure therapy
- pulsation frequency of the vacuum wave 6, 12, 20, 40, 60 imp/min.
- negative pressure maximum 500 mbar/gPa
- vacuum control range 100 - 500 mbar, 40 mbar increments
- number of suction cups 4
General parameters
- camera size 30 x 26 x 12 cm
- camera weight 3.5 kg
- power supply, power consumption 230 V, 50 Hz, 20 W, 40 VA
STANDARD EQUIPMENT
- network cable 1
- Cables connecting the pacemaker to the Avaco 2
- vacuum lines 4
- suction cups 60 mm 4
- cellulose backing 60 mm 4
- special handle 2
- spare fuses 2
- instructions for use 1
- protocol after verification of safety tests 1
- technical passport 1
- warranty card 1
ADDITIONAL EQUIPMENT
- 90 mm nozzles
- cellulose pads 90 mm
- Versa/ VersaX table
Рекомендується використовувати для роботи з апаратами з функцією електролікування виробництва Astar ABR з огляду на повну сумісність.
