Description

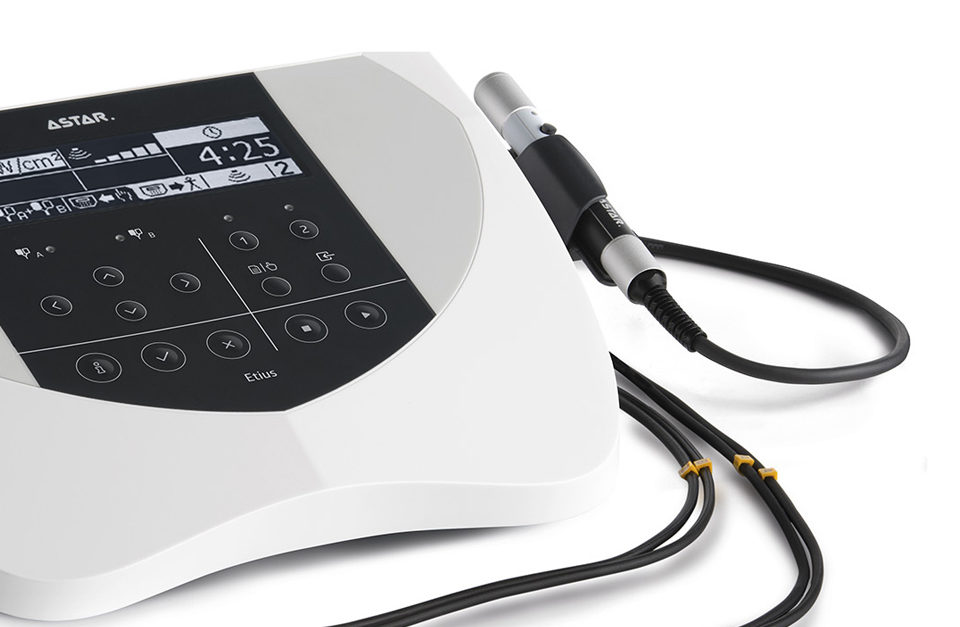

The Etius LM ASTAR multifunctional device – A device for electrotherapy, laser therapy and magnetotherapy
Multiple applications in just one device.
The Etius LM is a reliable device that enables a wide range of physiotherapy treatments to be carried out. With two fully independent electrotherapy channels and a channel for magnetotherapy or laser therapy, the device is a versatile tool for physiotherapists.
Discover the extensive features of the Etius LM standard series.
Etius LM - benefits for the customer
Advanced physiotherapy
The Etius LM, like all the devices in this series, has the ability to deliver physiotherapy treatments simultaneously in two independent channels, which, combined with the choice of laser or magnetic therapy applicators, maximises the therapeutic value of the device. For electrotherapy treatments, Etius LM provides all standard therapeutic currents, including SP-TENS, microcurrents and unipolar sine wave currents.
Security.
Etius LM is equipped with a self-test procedure that is performed every time the device is switched on. The device has an electrode check function, providing the user with information on the status of their consumption. This means that the device systematically checks the correct functioning of its individual components, ensuring their full efficiency and safety of use.
Modern technologies
The multifunctional Etius LM was developed in collaboration with physiotherapy specialists. The device is not only modern but also ergonomic. The Etius LM provides accurate electro-diagnostics with graphical representation of the I/t curve and automatic calculation of the coefficient of accommodation, reobase and chronaxia. The device also has a wide range of built-in programmes and treatment sequences.
L.M. Etzius - benefits for the therapist
Multitasking
The Etius LM provides rehabilitation with therapeutic currents, laser radiation or a magnetic field, and allows for the combination of individual treatments to obtain the best possible therapy results. The user can also use it to treat two patients simultaneously.
Comfort of use
This Astar device for electrotherapy, laser therapy and magnetic therapy is equipped with a user-friendly display and a user-friendly panel. Simplified operation, a database of 191 predefined treatment programmes and the ability to create up to 90 user-defined programmes make it easy to use.
Mobility
Treatment outside of a medical facility can be a necessity or an additional opportunity to expand the offer in any physiotherapy centre. The lightweight design of the device is therefore an additional advantage of the Etius LM. The specially designed ASTAR bag allows for safe storage of the device with all accessories.
Detailed technical specifications

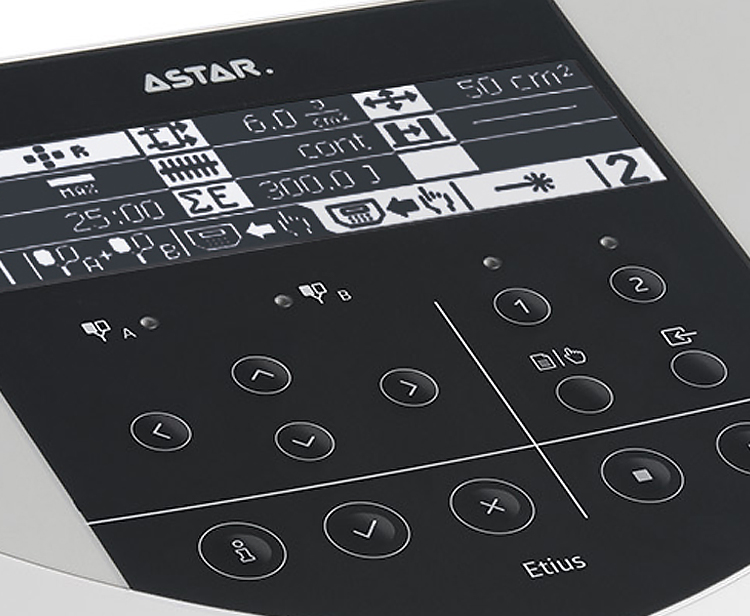

Large, easy-to-read display with graphic mode support
independent treatment channels 2
Intensity control in the patient contour for both channels simultaneously or separately electrode test
Electrotherapy
operation in CC (current stabilisation) or CV (voltage stabilisation) modes.
Laser therapy
Work with applicators: scanning laser, cluster laser and spot probes
Radiation mode: continuous and pulsed
adjustment of laser radiation power
coefficient of obligation
the ability to automatically repeat the treatment procedure
automatic laser power test
automatic calculation of time for treatment parameters - dose, power, load factor, treatment area
Three modes of irradiation field processing in scanning laser applicators
Dedicated modes for interaction with fibre optic applicators
fibre optic applicators for laser puncture and ENT applications
pilot beam indicating the place of application
Magnetotherapy
continuous and pulsed radiation
field shape: sine, triangle, rectangle, half-sine, half-triangle, half-rectangle
Additional work with one or two CPE applicator plates
convenient use of applicators with straps and Velcro
Preset treatment programmes
built-in treatment programmes, including: 271
built-in treatment programmes for electrotherapy 59
Applications for measuring infrared points 30
Programmes for measuring the R point 20
applications with Nogier frequency 8
applications with the Voll frequency 30
Cluster laser applicator applications 55
sequence of programmes for scanning laser applicators 25
built-in treatment programmes for magnetotherapy 44
user-configurable programmes 90
favourite apps 90
Preset treatment sequences
built-in treatment sequences for electrotherapy 30
Technical parameters of electrotherapy
maximum current in the patient circuit (CC mode)
- galvanic 40 mA
- dyadic, pulsed 60 mA
- interference, Kotz current 100 mA
- unipolar sinusoidal overvoltage 100 mA
TENS 140 mA
tonolysis 100 mA
microcurrents 1000 uA
maximum voltage amplitude in the patient circuit (CV mode) 140 В
treatment timer 1 – 60 minutes
Technical parameters of laser therapy
laser device class 3B
treatment timer 1 s - 99 minutes and 59 seconds
Laser therapy parameters - biostimulation with laser point probes
wavelength of the red light laser dot probes 660 nm
maximum power of red light sensors 80 mW
infrared laser point wavelength probes 808 nm
maximum power of infrared spot probes 400 mW
power control 25%, 50%, 75%, 100%
pulse mode frequency 1 - 5000 Hz
filling factor in pulse mode 25 - 75%, heart rate 50 us
Laser therapy parameters - scanning laser applicator
Wavelength of the scanning laser applicator 808 and 660 nm
Maximum power of the scanning laser applicator 450 and 100 mW
power control 50%, 100%
pulse mode frequency 1 - 5000 Hz
Filling factor for a scanning laser applicator in pulsed mode 75%
Laser therapy parameters - cluster laser applicator
wavelength of the cluster laser applicator 4x 808 nm and 5x 660 nm
maximum power of the cluster laser applicator 4x 400 mW and 5x 40 mW
power control 50%, 100%
pulse mode frequency 1 - 5000 Hz
filling factor in pulse mode 25 - 75%, heart rate 50 us
Technical parameters of magnetotherapy
maximum magnetic field induction 10 mT
operating frequency 2 - 120 Hz
Interval mode parameters pulse 1 s / break 0.5 - 8 s
treatment timer 1 - 30 minutes
General technical parameters
dimensions 30 x 23 x 11 cm
weight of the device 6 kg
power supply, energy consumption 230 V, 50/60 Hz, 70 W, 100 VA
Standard spare parts
- Door lock plug
- electrotherapeutic electrodes 6×6 cm
- electrotherapeutic electrodes 7.5×9 cm
- network cable
- patient cables
- report on the safety inspection after the control
- a set of treatment programmes and sequences
- spare fuses
- user manual
- Velcro belt 100x9
- Velcro belt 40x9
- viscose electrotherapy covers 10x10 cm
- viscose electrotherapy covers 8×8 cm
- warning labels
Additional equipment:
- bag for the unit and accessories
- Cluster laser applicator CL 1800 R 5×40 mW and IR 4×400 mW
- CPE type magnetic field applicators with lids
- magnet
- optical fibres: straight Ø 6 mm, 45 Ø 6 mm, 45 Ø 6 mm, tapered to 2 mm for laser acupuncture with holder
- spot electrodes with adapter 6 mm, 10 mm, 15 mm, 20 mm
- IR spot probe 808 nm / 400 mW with holder
- R 660 nm / 80 mW spot probe with holder
- sandbag 21 × 14 cm, 21 × 28 cm
- Scanning laser applicator R+IR 100 mW + 450 mW with stand
- self-adhesive electrodes 5x5 cm, 5x10 cm
- Stand for cluster laser applicator
- Versa / Versa X trolley
