Description

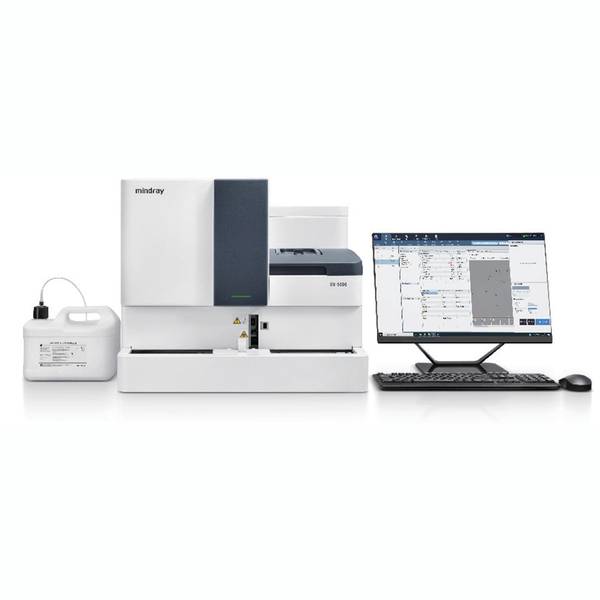

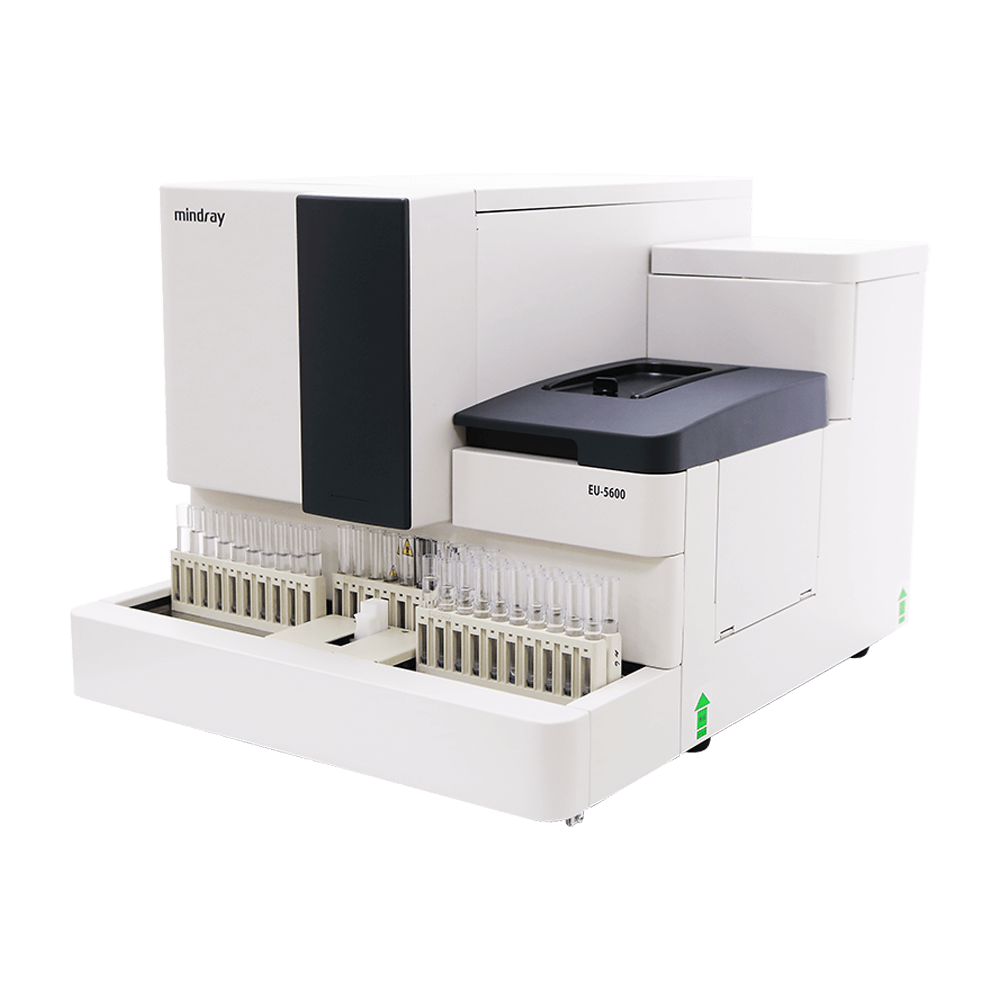

THE MAIN THINGS YOU NEED TO KNOW ABOUT EU 5600, MINDRAY
- A hybrid analyser that offers great capabilities in a small footprint.
- 9 additional red blood cell parameters for more accurate diagnosis of pathologies.
- Morphological analysis according to the Gold Standard.
- The most user-friendly interface that everyone can understand
ADVANTAGES OF THE MINDRAY EU 5600 URINE SEDIMENT ANALYSER
- High performance
- The hybrid system allows both sediment and chemical parameters to be analysed simultaneously in a urine sample. The result is a space-saving solution.
- Low consumption of washing solution
- Dynamic real-time intelligent focusing technology, no focusing reagent required, reducing test costs.
- Advanced identification of uniform elements.
- Just one reagent.
- Four measurement channels
EASE OF USE OF THE ANALYSER
- Russianised menu
- Clear interface, in the style of all Mindray equipment
- The ability to measure a sample from any position, at any time.
Features:
| Loading strips | 200 strips |
| Downloading samples | 50 samples |
| Determinable parameters in the sample | Uniform elements: Measured parameters – RBC, WBC, WBCC, BACT, YST, EC, SRC, CRYS, HYAC, UNCC, MUC; Calculated parameters – OI, Normocyte (#), Normocyte (%), Poikilocyte (#), Poikilocyte (%), AcaRBC (%), GhoRBC (%), SphRBC (%), UncRBC(%) Biochemistry: Measured parameters – GLU, PRO, BLD, BIL, pH, KET, VitC, URO, NIT, LEU, S.G., MCA, CRE, CA, Colour; Calculated parameters – P/C, Micro A/C |
| Measurement principle | Form elements - hardware definition Biochemistry - photoelectric colourimetry |
| Sample volume | Hybrid regime (mould elements + biochemistry) - 1.25 ml Moulded elements - 1 ml Biochemistry - 0.75 ml |
| Productivity | Hybrid mode (morphological elements + biochemistry) – 90 tests per hour Biochemistry – 160 tests per hour |
| Memory. | Unlimited |
| Interface. | Standard RS232 |
| Dimensions (LxWxH) | 600 mm × 770 mm × 530 mm |
| Weight | 71.5 kg |
The price of the equipment is included:
- VAT
- Staff training
- Warranty service: 12 months from the date of commissioning
- Service support and methodological support during the warranty period
