Description

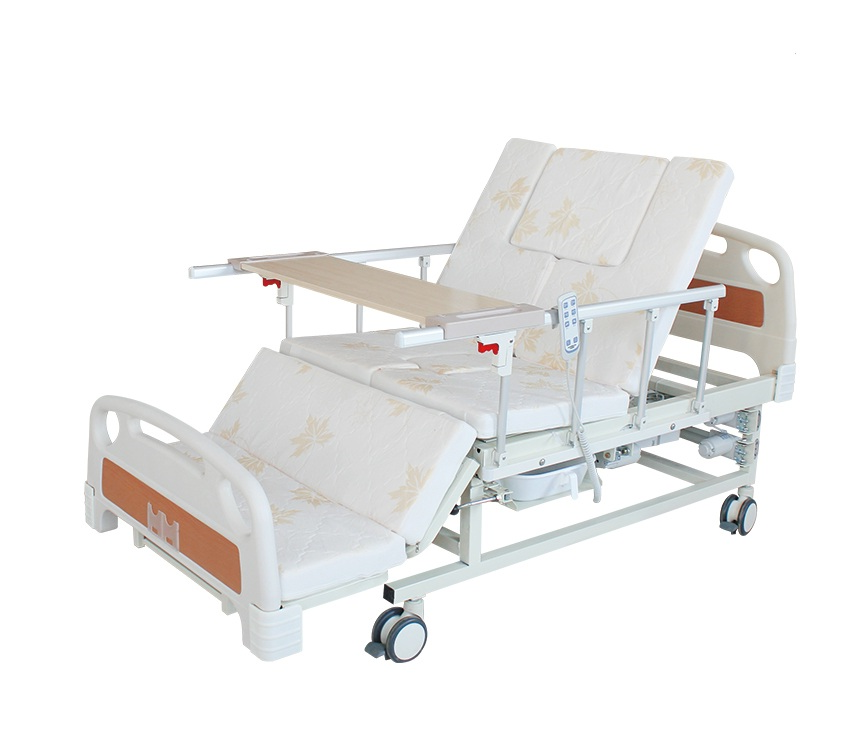

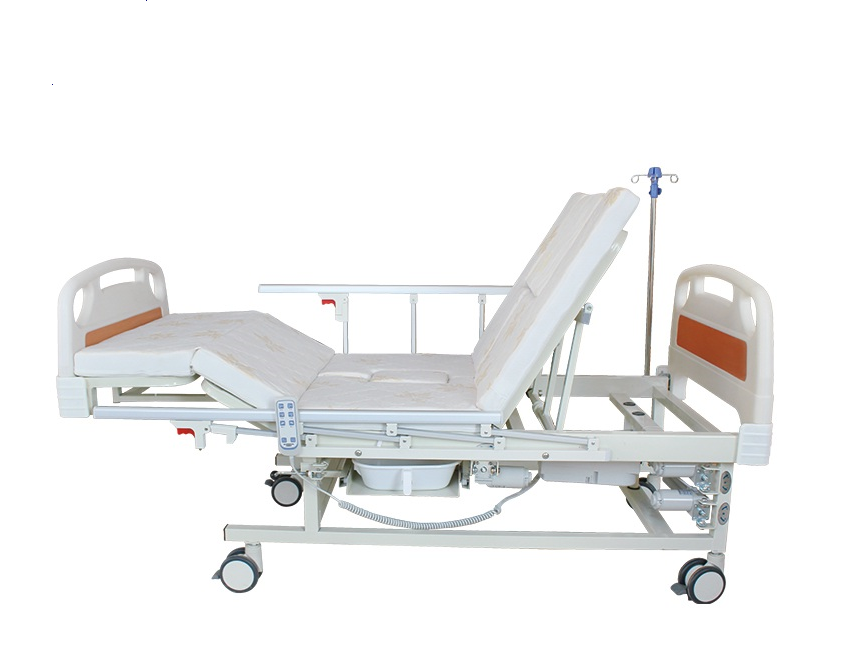

MIRID E20 medical functional bed with toilet. An electrically operated bed with a side-turning function for seriously ill patients. Functional bed. Rehabilitation bed. Bed for people with disabilities.
Control of the bed’s functions via a remote control.
A free bedside support rail is included with your bed!
A medical bed with a turning function, a head washbasin and a toilet. The bed is designed for the care of bedridden patients in healthcare facilities and at home, as well as for rehabilitation.
Bed adjustment:
- Angle of the back section: 0 – 75⁰
- Angle of the leg section: – 55 / 55⁰
- Angle of the bed base: to the left and to the right: 0–55⁰
Electric drive The E20 functional medical bed allows for the simplest and most comfortable adjustment of the patient’s position.
Bed design.
The structure is made entirely of steel. It has a powder-coated finish that is resistant to disinfectants. It can support a load of 250 kg.
The bed frame is made of steel. It has a powder-coated finish that is resistant to disinfectants. The bed rails are removable and made from ABS plastic. The metal side rails are foldable and feature locking mechanisms.

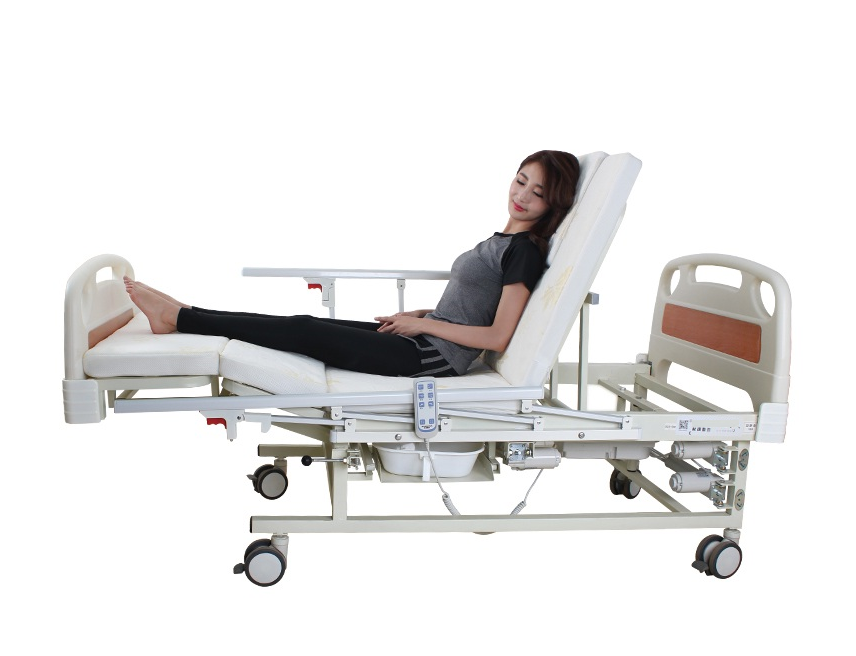

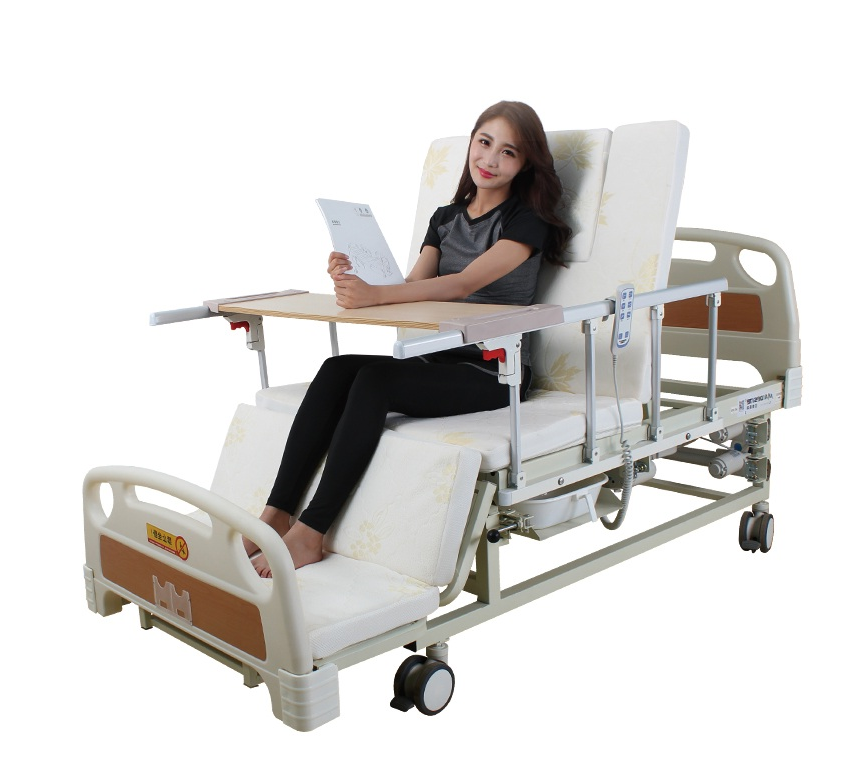

Cardio chair. The foot of the bed can be lowered, allowing the bed to be adjusted to this position, which is used in the effective treatment of various cardiac and other conditions. Furthermore, it ensures the most comfortable position whilst the patient is awake, eating or using the toilet.

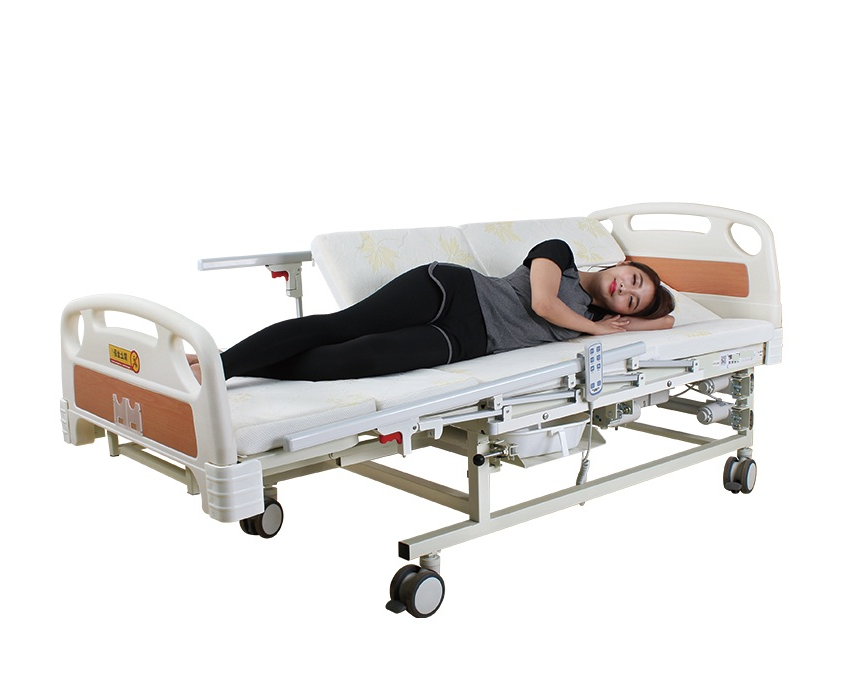

Flip function. It enables the sides of the bed to be raised and a heavy patient to be turned carefully, in order to prevent circulatory problems and the development of pressure sores in a paralysed patient.
Adjustment of the angle of the leg section. It helps improve blood circulation in the legs, prevents varicose veins and makes daily care easy.
Bathroom fittings. It consists of a rectangular container (215 × 250 mm) mounted on a retractable platform; the unit is operated by an electric motor via a remote control and is securely covered by a lid and a soft mattress pad.
Hair-washing device. It is a special tray that is placed in a recess specifically cut into the mattress at the head of the bed.
Mattress
The core of the mattress is made from coconut coir – a material consisting of fibres from the coconut palm. It is impregnated with natural latex; it is durable, eco-friendly, resilient, firm and non-hygroscopic. As a result, it will not become musty or absorb unwanted odours.
The polyurethane foam layer can withstand heavy loads. As it contains no allergenic components, it is widely sought after by people with allergies.
A cover made from a special medical-grade breathable fabric that can be treated with disinfectants. It fastens with a zip.
Advantages:
- Electric drive with remote-controlled bed adjustment
- The tilt function raises the sides of the bed to the left or right
- Medical condition of a cardiac chair from which the patient can exit whilst the footrest is removed
- Adjusting the position of the legs
- A toilet unit with a cistern
- A hair-washing device with a basin
- A bedside table that can be positioned anywhere along the length of the side rails
- An orthopaedic mattress, shaped to fit the bed frame, in a special cover
- Side barriers with push-button locks in two positions
- Silent, self-aligning wheels with rubber tyres
- Individual parking brakes on all four wheels. .
- Stand for administering infusion solutions
Technical characteristics:
- The maximum permissible weight is 250 kg.
- Bed dimensions: 2080 × 960 × 540 mm
- Weight of the bed: 91 kg.
- Control: electric
- Country of manufacture: China.
Easy to assemble:
- Unpack the bed, turn it upside down and fit the four castors
- Turn the bed over and fit the side rails
- Fit and secure the side rails of the bed
- Lay out the mattress and set up the bedside table.
- Congratulations! The assembly is complete – you now have a lovely new bed.
Package contents:
- Functional bed frame with mattress and mechanisms — 1 item.
- A free upgraded double-layer mattress — 1 item.
- Headboard backrest – 1 pc.
- Backrest support — 1 pc.
- Side handrails – 2 pcs.
- Infusion stand – 1 pc.
- Hair-washing basin — 1 pc.
- Toilet bowl — 1 pc.
- Bedside table – 1 pc.
- Wheels – 4
| Key | |
|---|---|
| Control type | Electric |
| Country of manufacture | China |
| Age group | For adults |
| Bed type | functional 5-section |
| Number of motors | 4 pcs. |
| Bed design type | Modular |
| Method of adjusting the main section | electric |
| Method of adjusting the middle section | electric |
| Method of adjusting the foot section | electric |
| Features. | Information pocket, IV pole kit, Mattress kit, Urinal stand, Cardiology chair position, Remote control, Meal tray |
| Overall dimensions | |
| Bed length | 2080 mm |
| Bed width | 960 mm |
| Bed height, including the headboard | 540 mm |
| Bed length | 1980 mm |
| Bed width | 900 mm |
| Diameter of the wheel supports | 100 mm |
| Material used in manufacture | |
| Bed frame | metal |
| Bed frame | steel mesh |
| End fence | plastic |
| Side barrier | metal |
| Additional specifications | |
| End fences | at the head and foot of the bed |
| Side barriers | on both sides of the bed |
| Average lifespan of a bed | 10 years |
| Wheel supports | 4 (each) |
| Angle of inclination of the main section | 75 degrees. |
| Angle of inclination of the footrest section | 55 degrees. |
| Additional features and specifications | |
| Toilet fixture | Mechanical drive |
| Securing the bed legs | 4 pcs |
| A basin for washing your hair | 1 pc |
| Mattress material | polyurethane foam |
| Mattress height | 60 mm |
| Maximum permissible weight | 250 kg |
