Description
MIRID BM3 electric bath lift. Electric lift for people with disabilities. Bath lift chair. Chair for people with disabilities.

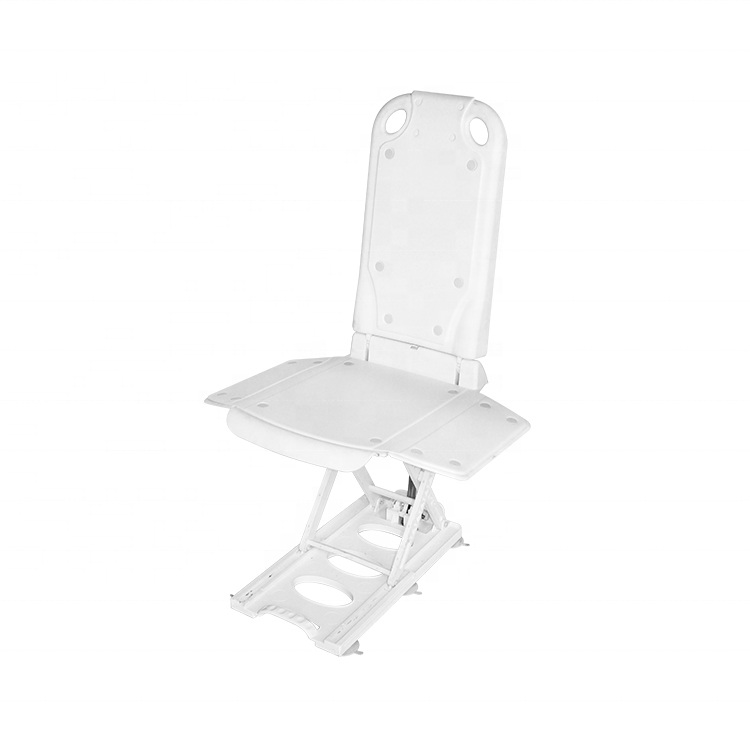

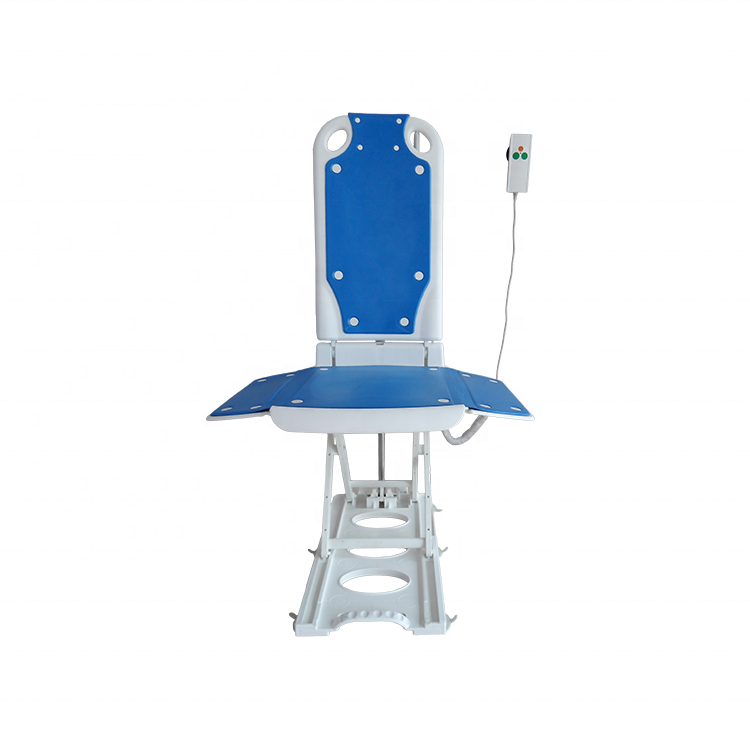

The MIRID BM3 bath lift, which is operated at the touch of a button, allows you to bathe comfortably and safely. The sturdy steel frame, with its reinforced base and support plate, guarantees complete safety. The high backrest with a headrest ensures comfort of use.
The device is easy to install and can be assembled with one hand.
Ergonomic design, superb comfort and safety.
The battery and control system are built into the handheld control unit. The lithium battery is protected against deep discharge and has no memory effect.
The unique design of the MIRID BM3 bath lift:
1. Foldable, portable and easy to carry.
2. The high-capacity battery can last for more than 10 charge cycles.

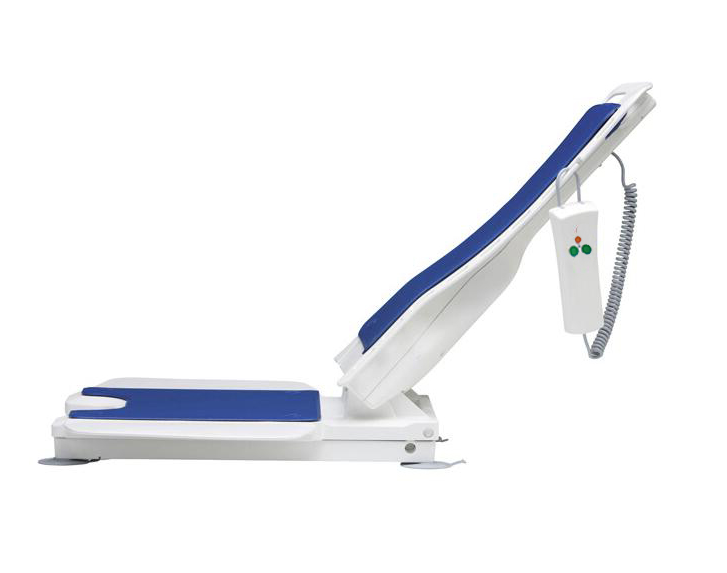

3. It can be tilted back by 45° for the user’s convenience.
4. Easy to install and remove – the lift splits into two parts to make installation and transport easier.
5. Suitable for a bath 40 cm wide.
- A remote control fitted with a rechargeable battery and an LED low-battery warning light
- Chair push mechanism
- Backrest
- Safety pin
- Seats
- Side panel
- Supporting section
- The lower part
- Suction cup
- Slider
- Castle
- Pen
- Battery
Advantages:
- Compact yet powerful. It is installed directly in the bath to simplify the bathing process and make it more convenient for people with physical disabilities.
- The MIRID BM3 bath lift guarantees comfort, safety and reliability. The comfortable seat allows you to lower yourself into the bath without the risk of slipping or putting excessive strain on your joints and spine. It is the ideal solution for people who are unable to look after themselves fully and for those who find it difficult to bathe independently.
- The seat is adjustable from 8 to 48.7 cm.
- The total height of the lift is 121 cm.
- The width of the seat with the side flaps is 72.5 cm, and without them, 40 cm.
- Lifting/lowering speed – 5 mm/s
- The maximum load capacity of the lift is 140 kg.
- The bath lift is fitted with two pads for the backrest and seat. The pads are made of polyurethane foam. They can be easily removed for cleaning.
- Removable suction cups on the legs ensure the chair remains stable in the bathroom.
- The lift control panel is waterproof; it can be submerged in water without the risk of a short circuit.
- A special connector has been fitted to the cable from the control panel to charge the battery. The lithium-ion battery is protected against complete discharge.
Technical characteristics:
- Type of control: electric drive
- Controlling the lift’s position: using the remote control
- Intended use: bathroom hoist
- Design: foldable
- Frame: steel
- Backrest material: medical-grade plastic
- Seat material: medical-grade plastic
- Ascent/descent speed: 5 mm/s
- Seat recline angle (degrees): backrest: 45–90
- Height adjustment: 8 – 48.7 cm
- Height of the lift when extended: 121 cm
- The width of the seat with the side flaps is 72.5 cm, and without them, 40 cm.
- Charging from a 220 V mains supply
- Emergency stop function: yes
- Weight (kg): 13
- Maximum load (kg): 140
- Device protection rating: IP66
- Battery: 14.8V 2.2Ah 13.5 × 4 × 2 cm
- Warranty period: 12 months.
Device contents:
- Lift chair – 1 item.
- Remote control – 1 pc.
- Seat covers – 2 pcs.
- Suction cups for legs – 6 pcs.
- Charger – 1 pc.
- Operating manual – 1 copy (in electronic form)
| Key features | |
|---|---|
| Country of manufacture | China |
| Load capacity | 140 kg |
| Lifting height | 47 cm |
| Emergency stop function | Yes |
| Warranty period | 12 months |
| Status | New |
| Drive | Electric |
| Type of hoist | Mobile |
| Overall dimensions | |
| Length | 63 mm |
| Width | 72 mm |
| Height | 121 mm |
| Weight | 13 kg |
| User specifications | |
| Product material | Steel |
