Description

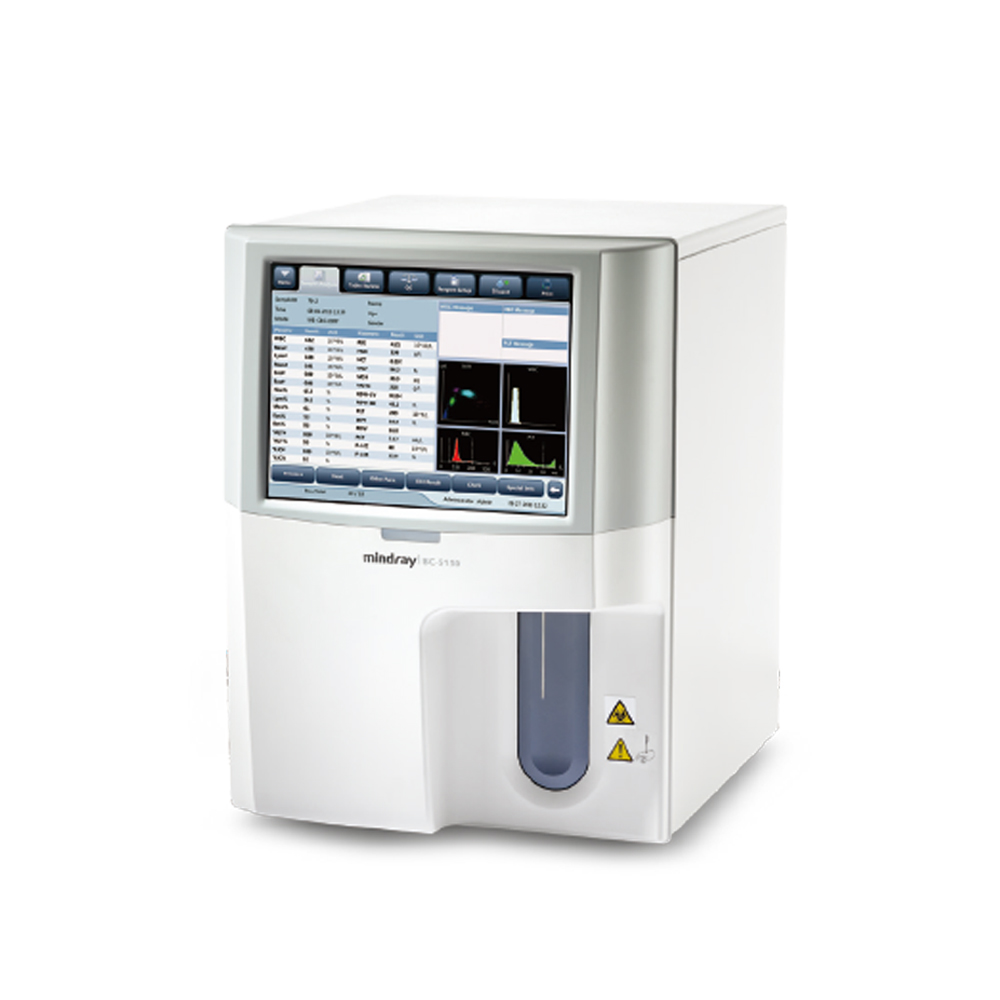

The main things you need to know about BC-5150, Mindray
- Quantitative automated haematology analyzer designed for in vitro diagnostics in clinical laboratories.
It is most effective for use in specialised medical institutions and inpatient departments of clinics. - It can be used to perform clinical blood tests, differentiate leukocytes into 5 subpopulations, measure haemoglobin concentration, and detect atypical and immature cell forms.
Advantages of BC-5150
- 60 tests per hour – optimum performance for the workload needs of most laboratories.
- The use of the flow cytometry method provides high accuracy of differential leukocyte counting.
- Possibility of conducting SCREENING of normality and pathology.
- The range of parameters to be determined – 49 indicatorsThe clinician's work is important.
- Reduced microscopic count of leukocyte formulas to 15-20% (of the total number of samples tested) due to the high accuracy of measurements, automatic calculation of the complete white blood cell count, typing of pathological and immature forms of all types of blood cells.
- The ability to choose the most efficient research mode for each type of diagnostics, which saves reagent consumption and time spent on one analysis, namely
two test modes:
– General blood count;
– CBC+Diff: complete blood count with differentiation of 5 leukocyte subpopulations.
- The speed of the result is 30 seconds in the CBC mode and 1 minute in the CBC+ DIFF mode.
- Low cost per analysis 4.50 UAH. with a device load of 60 tests per day.
Easy to use
- Russianised menu
- Large TFT touchscreen display with simple, intuitive, interactive operation
- Standard RS232 interface for connection to an external computer
- 4 USB ports for connecting additional external devices
- Integrated thermal printer
- Built-in barcode scanner
- Automatic calibration
- Flagging pathological results
- Storage of up to 40,000 test results in memory, including all numerical data, histograms and scatter plots.
The price of the equipment is included:
- VAT
- Staff training
- Warranty service: 12 months from the date of commissioning
- Service support and methodological support during the warranty period
| Parameters in the blood sample | WBC: Lym%, Lym#,Mon%, Mon#, Neu%，Neu#, Bas%，Bas#，Eos%，Eos#，Eos#
ALY#, ALY% (abnormal lymphocytes), LIC#, LIC% (large immature cells), PLT Clumps#, PLT Clumps%, Lip#, Lip%, NRBC#, NRBC%, Blast#, Blast%, PDW-SD, NLR, PLR. Scatter plots for Neu-X, Neu-Y, Neu-Z, Lym-X, Lym-Y, Lym-Z, Mon-X, Mon-Y and Mon-Z RBC: MCV，MCH，MCHC，RDW-CV，RDW-SD，. HGB， HCT， PLT: MPV，PDW，PCT，P-LCR，P-LCC |
| Measurement principle | Impedance method for the quantitative determination of white blood cells (WBC), platelets (PLT) and red blood cells (RBC). Colourimetric method for measuring haemoglobin (HGB). A flow cytometry method for differentiation and cell counting of the leukocyte population. The results for other parameters are estimated values. |
| Sample volume | Whole blood (venous or capillary) – 15 µl
Pre-dilution mode - 20 µl |
| Productivity | Up to 60 tests per hour |
| Reagents | 1 thinner and 2 lye solutions
(M-52 Diluent, M-52 Diff Lyse, M-52LH Lyse) |
| Display. | TFT touch screen, 10.4 inches |
| Memory. | For 40,000 results |
| Printer | Built-in, thermal, paper width 57 mm |
| Interface. | Standard RS232 |
| Data exchange | LAN port – the analyser supports connection to a laboratory computer network (15ID and HL7) |
| Dimensions (HxWxD) | 435 × 325 × 410 mm |
| Weight | 25 kg |
