Description

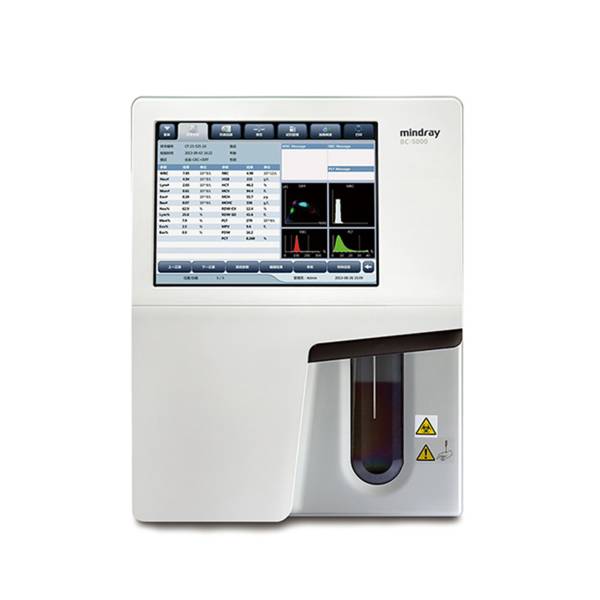

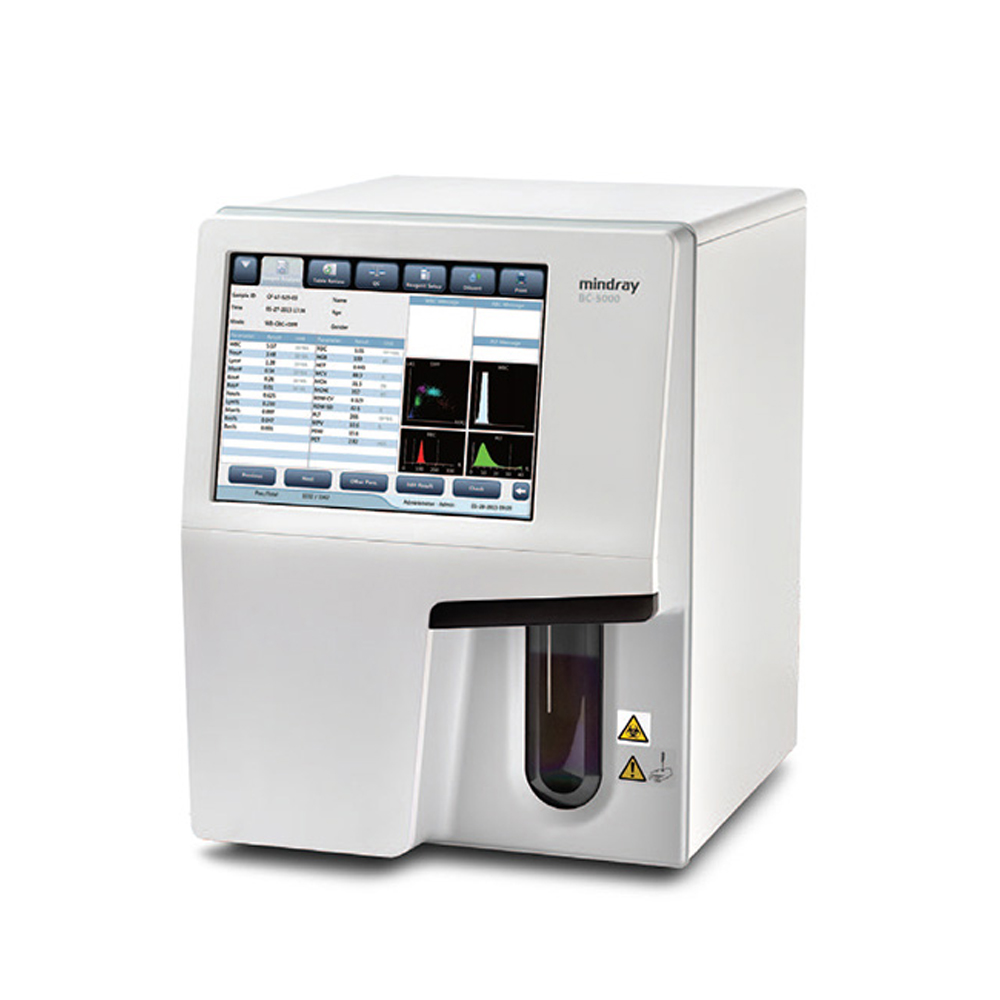

Гtin, what you need to know about BC-5000, Mindray

1. Quantitative automated haematology analyzer designed for in vitro diagnostics in clinical laboratories.
2. It is most effective for use in specialised medical institutions and inpatient departments of hospitals
3. It can be used to perform clinical blood tests, differentiate leukocytes into 5 subpopulations, measure haemoglobin concentration, and detect atypical and immature cell forms

Advantages of the BC-5000 Mindray

• 40 tests per hour - optimal performance for laboratories with an average patient flow.
• The use of the flow cytometry method ensures high accuracy of differentiated leukocyte counting.
• Possibility to perform SCREENING of normality and pathology.
• The range of defined parameters includes 25 indicators important for the work of a clinician.
• The reduction of microscopic counting of leukocyte formulas to 15-20% (of the total number of samples tested) is due to the high measurement accuracy, automatic counting of the complete leukocyte formula, and typing of pathological and immature forms of all types of blood cells.
• The ability to choose the most rational research mode for each type of diagnostics, which saves reagent consumption and time spent on one analysis, namely
  two test modes:

- CBC - general analysis;
- CBC + Diff - general analysis with differentiation of 5 leukocyte subpopulations.

• The analyser has a "flagging" function, i.e. a system for detecting indicators that go beyond the normal range:
  - "flagging" the reference range,
  - "flagging" the display range,
  - "flagging" of pathological indicators of differentiation or morphology of blood cells.
• Low cost per analysis - UAH 3.57 when the device is loaded with 50 tests/day.

Ease of use

• Russianised menu
• Large TFT touchscreen display with simple, intuitive, interactive operation
• Standard RS232 interface for connection to an external computer
• 4 USB ports for connecting additional external devices
• Integrated thermal printer
• Built-in barcode scanner
• Automatic calibration
• Storage of up to 40,000 test results, including all numerical information, histograms, and scatter plots.

The price of the equipment is included:

• VAT
• Staff training
• Warranty service: 12 months from the date of commissioning
• Service support and methodological support during the warranty period.

Determinable parameters in the sample

WBC: Lym%, Lym#,Mon%, Mon#, Neu%，Neu#, Bas%，Bas#，Eos%，Eos#，Eos#

RBC: MCV，MCH，MCHC，RDW-CV，RDW-SD，.

HGB，

HCT，

PLT: MPV，PDW，PCT，P-LCR，P-LCC

Principle. measurement

Impedance method for the quantitative determination of white blood cells (WBC), platelets (PLT) and red blood cells (RBC).
A colourimetric method for measuring haemoglobin (HGB).
A flow cytometry method for differentiation and cell counting of the leukocyte population.
The results for the other parameters are estimated values.

About.'sample volume'

Whole blood (venous or capillary) -11.7 µl
Pre-dilution mode - 20 µl

Prconductivity Up to 40 tests per hour

Reagentи 1 diluent and 2 lysing solutions (M-52 Diluent, M-52 Diff Lyse, M-52LH Lyse)

Display. TFT touch screen, 10.4 inches

Pam'five' For 40,000 results

Printer Built-in, thermal, paper width 57 mm

Іinterface Standard RS232

Obmіn danby them LAN port - the analyser supports connection to a laboratory computer network (15ID and HL7)

Рosmosis (HxWxH) 435 × 325 × 410 mm

ВYeah. 23 kg
