Description

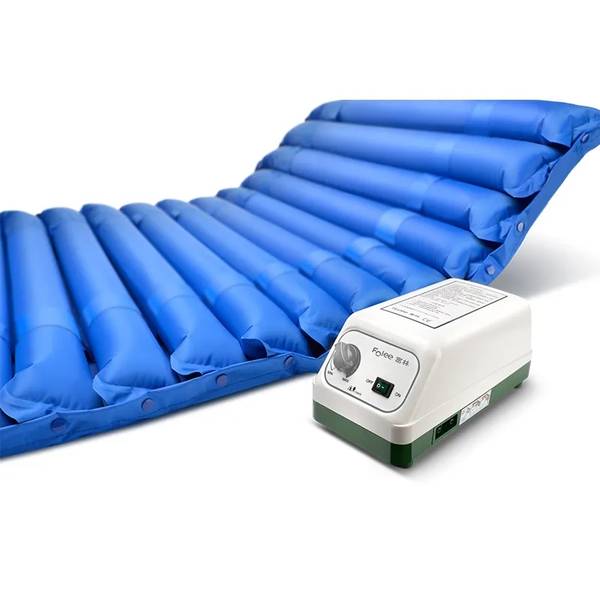

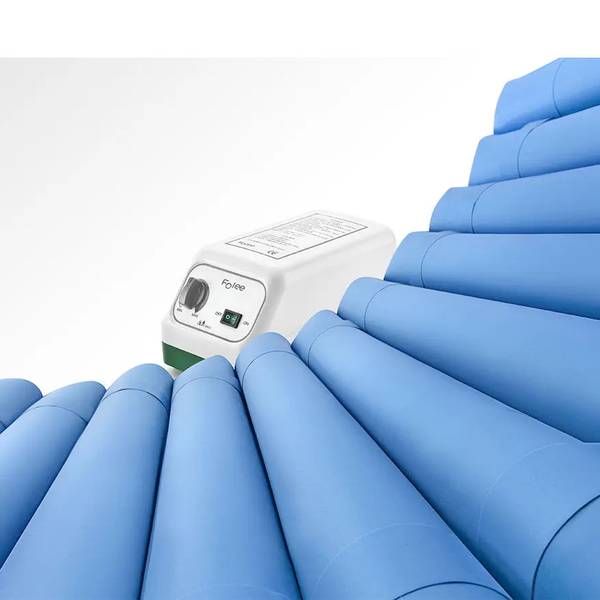

The pressure ulcer prevention mattress consists of a mattress and an air pump (compressor). The J003 is an alternative pressure ulcer mattress of the sectional type.
The mattress consists of two sets of separated air cushions that are connected into two sets of air circuits in a compressor. The physics of the anti-decubitus mattress is that the regular supply and release of air creates continuous circular waves that force the patient's muscle tissue to frequently change the pressed part, effectively preventing pressure ulcers.
The mattress is made of non-toxic PVC or TPU material, PVC with nylon fabric or TPU with nylon fabric, and has 22 interchangeable tubes.

MORE INFORMATION ABOUT THE J003 FOLEE ANTI-DECUBITUS CELLULAR MATTRESS WITH COMPRESSOR

• Low-noise design. Operating noise does not exceed 45 dB(A).
• Safe design with rounded edges.
• Simple and straightforward adjustment button.
• The air pump (compressor) is fitted with a suspension on the rear side, which can save space.
• The air pump is divided into air-current and alternative types according to the mode of operation.
• The air pressure at the outlet of the air pump is adjustable,
  maximum pressure ≥12 kPa.
• At maximum working load, the maximum pressure of the mattress is ≥4kPa.
• Maximum compressor flow ≥4.5 l/min.
• Normal working condition:

1. Ambient temperature: 5℃~40℃;
2. Relative humidity: ≤80%;
3. Atmospheric pressure: 86kPa ~ 106kPa;
4. Power supply: 220В±22В/110В±11В, 50Гц/60Гц±1Гц.
5. Power: 8VA

• Security function:

1. Impact resistant type of air pump (compressor): Class II device;
2. Degree of impact resistance of the air pump: used part type B;
3. Operating mode: continuous operation;
4. Degree of liquid supply: IPX0.
